Spartan 150 SA



Electric power - 1/2HP Gear Drive Motor
Manual Clamping: Hand crank wheel system provides over 200% more clamping force than the lever clamping system. RESULT - a better cut.
Safety Guards:  Safety covers over the front table (the cutting area) and rear table.
Safety Dual Cut  Buttons: Requires the simultaneous use of both hands to operate.
Construction:



Heavy Duty Steel, Cast Iron, and Cast Aluminum Construction gives it "Challenge durability". Hardened steel components and bronze bearings on most wear surfaces increase the life of the machine.

    LED Digital Backgauge Position Display -

The easy to read digital display located on the front table of the machine allows the operator to easily set the backgauge position accurately…every time.

    LED Cut-Line Light -

Twelve red LED lights positioned over the knife provides the brightest, most consistent and easy to see optical cut-line in the industry.

    Auto Releasing Front Safety Shield -

Front shield automatically pops open after a cut cycle is completed allowing the operator to remove the cut stock without the extra step of having to manually open the cover.

    Virtually Maintenance Free Knife Bar Gibs -

"Gibs" are devices used to control the knife position during a cut cycle assuring a consistent and accurate cut. Traditionally, these surfaces require routine lubrication because of the continuous surface friction they have with the moving knife bar. The Spartan 150 SA gibs however, are made of an advanced material called UHMW that is both strong and self-lubricating - resulting in virtually maintenance free durability.

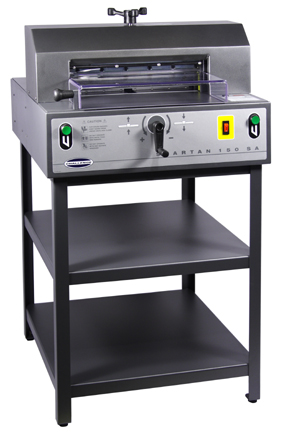

Spartan 150 SA

(Shown with optional stand)
