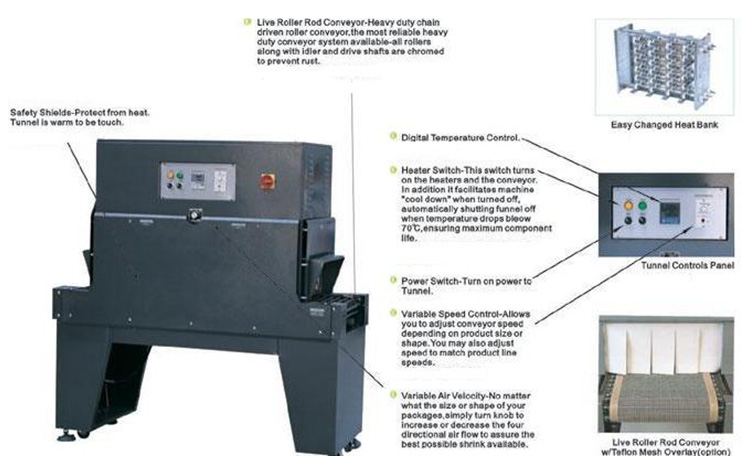

Shrink Tunnel PPG Series
4 directional air flow
State-of-the-art AC variable speed drive
Automatic tunnel cool down with shut off
Thermal overload protection on all motors
Adjustable air velocity control
Chromed conveyor rollers and shaft (no rust)
Solid state digital temperature control
Live roller rod conveyor
Sealed bearings on drive and idler shafts
Locking casters w/leveling screws
OPTIONAL FEATURES
Dead rollers "polyethylene"
Teflon mesh belt
High density rollers
Non-standard voltage
Custom paint
Spare parts kits
| Model |
PPG 180828
|
PPG 180844
|
PPG 1808-72
|
| Power supply |
220V / 3PH / 40 A |
220V / 3PH / 40 A
|
220V / 3PH / 50 A
|
| Machine dimensions |
40” x 26” x 61” (H)
|
61" x 26" x 61" (H)
|
97" x 26" x 61" (H)
|
| Chamber dimensions |
28” x 18” x 8” (H)
|
44" x 18" x 8" (H)
|
72" x 18" x 8" (H)
|
| Shipping weight |
450 lbs
|
600 lbs
|
900 lbs
|
