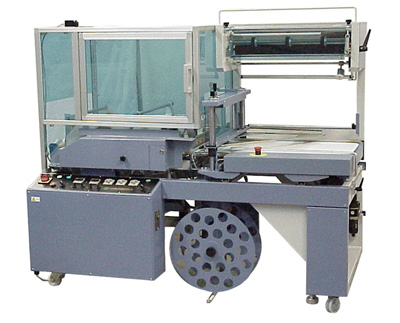

MEC - Pack Std and BIG
- Dual belt conveyor for efficient product transfer
- Automatic film advance for continuous wrapping
- "Tail" film advance capability
- Film perforators included
- Enhanced safety systems
- Dual photocells for either horizontal or vertical product sensing
- Easy product set-up and change-over
- Easy adjustment for product heights
- Teflon sprayed aluminum hot knife sealing
- "TEARSTRIP" adaptable
- Separate control for vertical and horizontal seats
- Manual sealing option
- Seal timer control
- Compressed air operation
- Motorized film scrap rewind with electronic tension control
- Ergonomic control panel
- Film advance by chains for secure continuous operation
- Easy center folded film load with automatic unroll
- Wheel mounted for easy transport
- Works with any centerfold film (PVC, PE, PPL, PO, OPP, etc)
| Model |
MEC-Pack STD/STA
|
MEC-Pack BIG
|
| Power supply |
220V / 3PH - 10 AMP
|
|
| Compressed Air Consumption |
1 CFM @ 80 PSI
|
|
| Motorized Center Seal |
Yes
|
|
| Min. Package dim. |
3.6" x 3.6"
|
7.1" x 4"
|
| Max. Package dim. |
21.6" x 17.6"
|
29.5" x 24.5"
|
| Max. Package height |
6"
|
|
| Packaging speed |
Up to 40 p/m
|
Up to 30 p/m
|
| Min centerfold film |
8"
|
10"
|
| Max centerfold film |
21.5"
|
27.5"
|
| Overall machine dim. |
39" x 71" x 57"
|
45" x 94" x 57"
|
