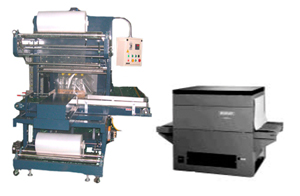

SSE 850 / TD-30-10
• 15 packages per minute
• PLC Control
• Seal bar w/ knife
• 90 degree inline infeed conveyor included
• Precise temperature control
• Film feed control system power
• Inline & Right-Angle infeeds
• Packages w/ or w/o trays
• Good w/ multi-packaging. ie. bottles, cans & boxes
• Special pulling pole that moves objects into film automatically
• Suitable for most shrink films, including PE / PVC
Tunnel
• 30"x19"x54" (WxHxL) tunnel chamber
• Adjustable air dampers
• Adjustable high velocity/volume blower
• Heat ducted to all sides, top and bottom
• Automatic cool down circuit
• Digital P.I.D. temperature controller
• Variable speed 1-120fpm conveyor
• No maintenance mesh belt
• Durable electrostatic powder finish
• 24,000 watts of available heat
• BFK-2 poly cooling fan kit
• Heavy product idling rollers bed under mesh belt
• ONE YEAR WARRANTY
| Specifications | SSE 850 Inline Bundler / Sleeve Wrapper |
TD-30-10 Tunnel |
| Machine Size | 57.1"x63"x74.9" | 74"x44"x60" |
| Shipping size/weight | 1020 lbs | 92"x52"x72" 890 lbs |
| Required Power | 220Volts
50/60Hz 80psi |
220volts
3ph 70amps |
| Seal Area | 33½" | 30"x19"x56" (WxHxL) |
| Packages per Minute | 12-15 | 60-75 |
| Max. Product Size | 15¾"x11.9" (WxH) |
28"x16" (WxH) |
