LSA 504 / TD-18-8-M



Sealer
• Easy to operate accessible control panel
• Emergency stop button on infeed section
• 2 speed operation - normal and high
• Accurate electronic temperature control on sealing knives
• Runs random length products
• Motorized Film wind and unwind
• Optional 504C

Model 504C is equipped with a special closing conveyor in seal area. Allows small packages to transfer easier. Also allows seal head to close. Comes with on/off switch. Reduces to 20-25 packages per minute.

Tunnel
• Heated air to all sides of the product
• 3 adjustable air flow dampers
• Dual high velocity/volume blowers
• Digital P.I.D. self tuning temperature controller
• Long life 8,000 watt cal-rod heaters
• Variable speed 0-120fpm high speed conveyor
• Teflon™ coated no maintenance mesh belt
• Adjustable conveyor height 29"-34"
• Heavy insulation for optimum efficiency
• 36" (L) chamber provides good shrink
• Console and locking casters standard
• ONE YEAR WARRANTY


Specifications LSA 504
L-sealer
TD-18-8-M
Tunnel
Machine Size 65½"x3½"x54" 44"x30"x52"
Shipping size/weight 1150 lbs 73"x52"x59"
475 lbs
Required Power 220VAC 1ph
60Hz / 80psi
220volts 1ph
40amps
Seal Area 17"x21½"x4Ύ"
(WxLxH)
18"x8"x36"
(WxHxL)
Packages per Minute up to 30 30-40
Max. Product Size 16"x19½"x4Ύ"
(WxLxH)
17"x7"
(WxH)

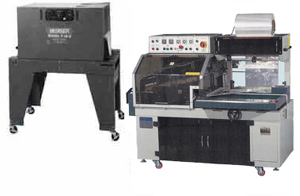

Beseler LSA 504/TD-18-8
