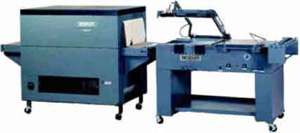

2420-MTB-II / TD-20-12
• 24"x20" (WxH) seal area
• Self adjusting seal pads
• Fully welded heavy duty steel frame
• Heavy duty 11 gauge steel frame
• Automatic dual magnets
• Variable speed soft start conveyor
• Stainless steel film hold downs
• Film tension brake
• Easy quick change mono seal wire
• Fully welded seal head
• Stainless steel product loading tray
Tunnel
• 20"x12"x54" (WxHxL) tunnel chamber
• Adjustable air dampers
• Adjustable high velocity/volume blower
• Heated air ducted to all sides, top and bottom
• Automatic cool down circuit
• Digital P.I.D. temperature controller
• Variable speed 1-120fpm conveyor
• No maintenance mesh belt
• Durable electrostatic powder finish
• 12,000 watts of heat available
• ONE YEAR WARRANTY (including seal wire)
| Specifications |
2420-MTB-II |
TD-20-12 |
| Machine Size | 60"x39"x36" | 70"x34"x45" |
| Shipping size/weight | 73"x52"x59" 576 lbs |
87"x52"x65" 690 lbs |
| Required Power | 220volts
1ph 15amps |
220volts
1ph 60amps |
| Seal Area | 20"x16" | 20"x12"x72" (WxHxL) |
| Packages per Minute | 15-18 | 60-75 |
| Max. Product Size | 23"x19" (LxW) |
19"x11" (WxH) |
